Normally Open Solenoid Valve For Electrocardiogram Monitors

Normally Open Solenoid Valve For Electrocardiogram Monitors

Get Latest Price

Payment Type:	L/C,T/T,Paypal
Min. Order:	1000 Set/Sets
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen Port

Contact Now

Product Description

Product Attributes

Model No.: MXV1220-01

Brand: Ming Xinxiang

Origin: Dongguan, Guangdong, China

Certification: RoHS, ISO9001

Packaging & Delivery

Selling Units	:	Set/Sets
Download	:

The file is encrypted. Please fill in the following information to continue accessing it

Workshop miniature air pump machine video



Product Description

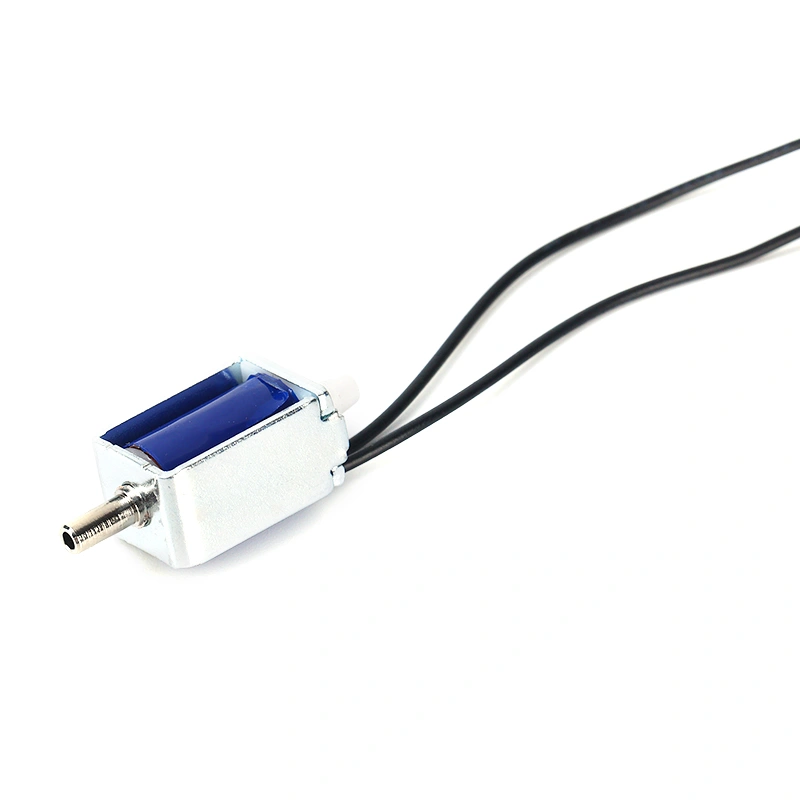

Normally Open Solenoid Valve For Electrocardiogram Monitors

Stable Airflow Switching for ECG Monitoring Systems

Electrocardiogram monitoring devices usually rely on precise airflow control during pressure detection and signal collection. If the internal airflow response becomes unstable, it may affect pressure accuracy and equipment consistency during long working periods.

Parameter	Specification
Model No.	MXV1220-01
Rated Voltage	DC3.0V / DC3.7~12V (Series)
Rated Current	60±10% mA
Rated Power	1.8±10% W / 0.34W (Reference)
Air Tightness	＜3.0mmHg/min
Exhaust Speed	＜5s (300mmHg→15mmHg, 100cc)
Structure	Normally Open, One-way
Rated Load	300mmHg
Air Circuit Status	Port 1-2 closed when energized, open when de-energized

The normally open solenoid Valve For Electrocardiogram Monitors is designed for compact medical and diagnostic equipment requiring stable airflow switching and reliable pressure release control. Ming Xinxiang Normally Open Solenoid ValveIts normally open structure allows the air path to remain connected when power is off, helping reduce unnecessary pressure accumulation inside monitoring systems.

Fast Exhaust Response Helps Improve Monitoring Stability

For ECG monitoring equipment, airflow release speed directly affects pressure recovery and system response efficiency. Slow exhaust can cause delays during repeated detection cycles.

Three-way two-position normally open solenoid valve

The MXV1220-01 12V 3 Way Normally Open Solenoid Valve keeps exhaust speed below 5 seconds under 300mmHg testing conditions, helping the airflow system return to stable status more quickly. Air tightness below 3.0mmHg/min also helps reduce leakage during continuous operation.Its low power consumption design supports compact medical products that require long working hours without increasing overall system load.

Product Dimensions：

Compact Structure Fits Portable Medical Devices

Portable ECG monitors and compact healthcare instruments usually leave very limited internal installation space. Oversized pneumatic components can make layout design more complicated and increase product size.

The MXV1220-01 3 Way 2 Position Normally Open Solenoid Valve The valve also supports multiple voltage configurations from DC3.0V to DC12V, giving manufacturers more flexibility during product development.

Ming Xinxiang The Normally Open Solenoid Valve For Electrocardiogram Monitors performs well in compact medical systems requiring stable airflow switching and low-pressure control.Its normally open airflow structure also helps improve pressure release efficiency in continuous-use medical products.
