Miniature DC Water Pump 200-1000 ml/min for Water Dispensers

Miniature DC Water Pump 200-1000 ml/min for Water Dispensers

Get Latest Price

Payment Type:	L/C,T/T,Paypal
Min. Order:	1000 Set/Sets
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen Port

Contact Now

Product Description

Product Attributes

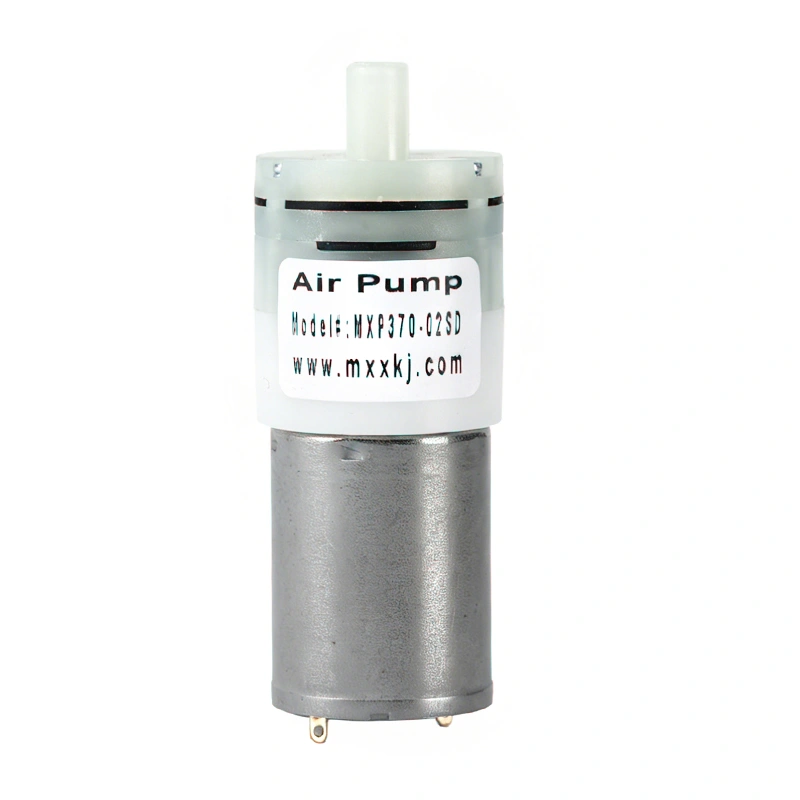

Model No.: MXP370-02SD

Brand: Ming Xinxiang

Origin: Dongguan, Guangdong, China

Certification: RoHS, ISO9001

Packaging & Delivery

Selling Units	:	Set/Sets
Download	:

The file is encrypted. Please fill in the following information to continue accessing it

Workshop miniature air pump machine video



Product Description

Miniature DC Water Pump 200-1000 ml/min for Water Dispensers

Stable Water Flow Helps Improve Daily Dispensing Performance

Water dispensers and compact liquid delivery systems usually need smooth and stable water output during continuous use. If the flow becomes inconsistent, users may notice uneven dispensing or weak pressure during operation.

Parameter	Specification
Model No.	MXP370-02SD
Voltage	DC3.7V (Compatible with DC3.0~24.0V series specifications)
Max Current	＜700mA
Flow Rate	＞2.8L/min (Series range: 200~1000ml/min)
Suction Head	＞2m
Lift of Pump	＞20m
Medium	Clean water
Operating Temperature	5~45℃
Operating Environment	0~50℃, 75%RH
Noise Level	＜65dB
Applications	Tooth irrigator, coffee machine, water dispenser, pipeline machine

The Miniature DC Water Pump for Water Dispensers is designed for small household appliances that require reliable liquid transfer in limited installation spaces. The MXP370-02SAD Miniature DC Water Pump provides flow rates above 2.8L/min while supporting series specifications from 200ml/min to 1000ml/min, making it suitable for different water control requirements.

Mingxinxiang miniature high pressure water pump With lifting height above 20 meters and suction capability over 2 meters, this pump maintains stable transmission performance even in compact pipeline systems.

Compact Design Makes Product Integration Easier

Modern household equipment is getting smaller and more portable, so internal components also need to fit tighter structures without affecting performance.

Miniature DC Water Pump for Water Dispensers

The MXP370-02SAD Mini water pump uses a compact body structure that helps manufacturers save internal assembly space while keeping water delivery stable. Its lightweight design also helps reduce the total weight of portable equipment.

Product Dimensions：

Get away from noise and enhance your perception

For home appliances and personal care products, operating sound is always an important part of the user experience. Excessive vibration and loud motor noise can easily affect product quality perception.

The MXP370-02SAD Miniature Water Pump 200-1000 ml/min keeps working noise below 65dB while maintaining stable liquid flow. This allows the pump to operate more smoothly during long working cycles without creating noticeable disturbance.

The pump also supports wide voltage compatibility from DC3.0V to DC24.0V series specifications, giving manufacturers more flexibility during product development.

Customization Service

Mingxinxiang provides flexible customization support for compact liquid pumps and intelligent water circulation systems.

Customization support includes:

Voltage adjustment

Flow rate optimization

Pressure tuning

Connector modification

Noise reduction solutions

Wire length customization

Structural installation adjustment

Application-based matching support

Our engineering team can also assist with household appliance and liquid control system development.
